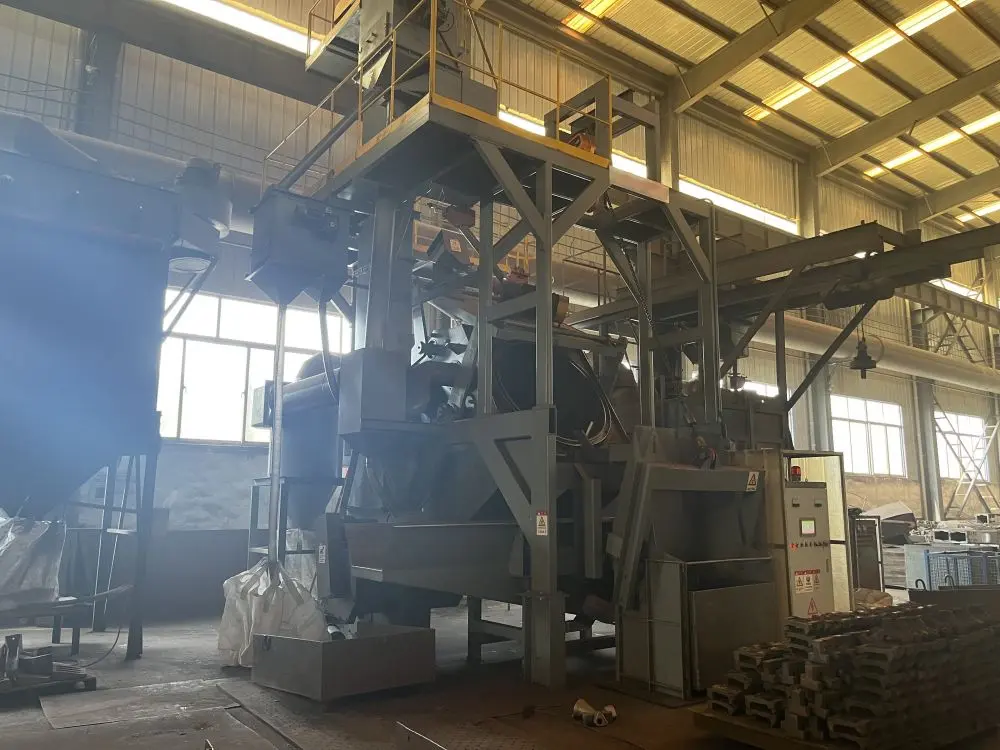

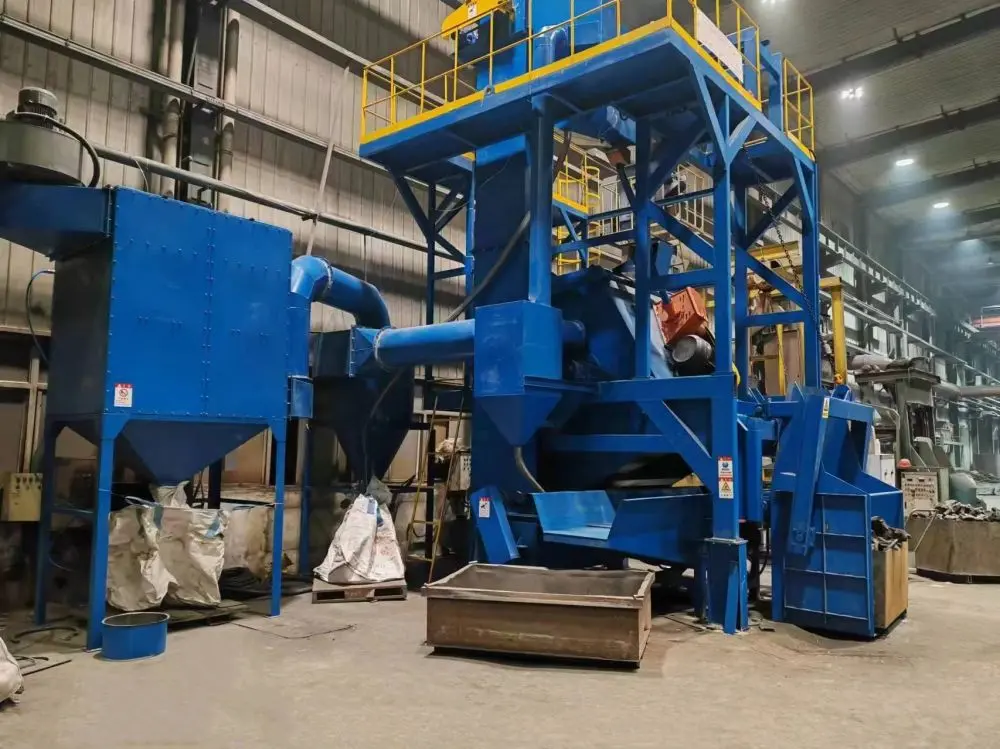

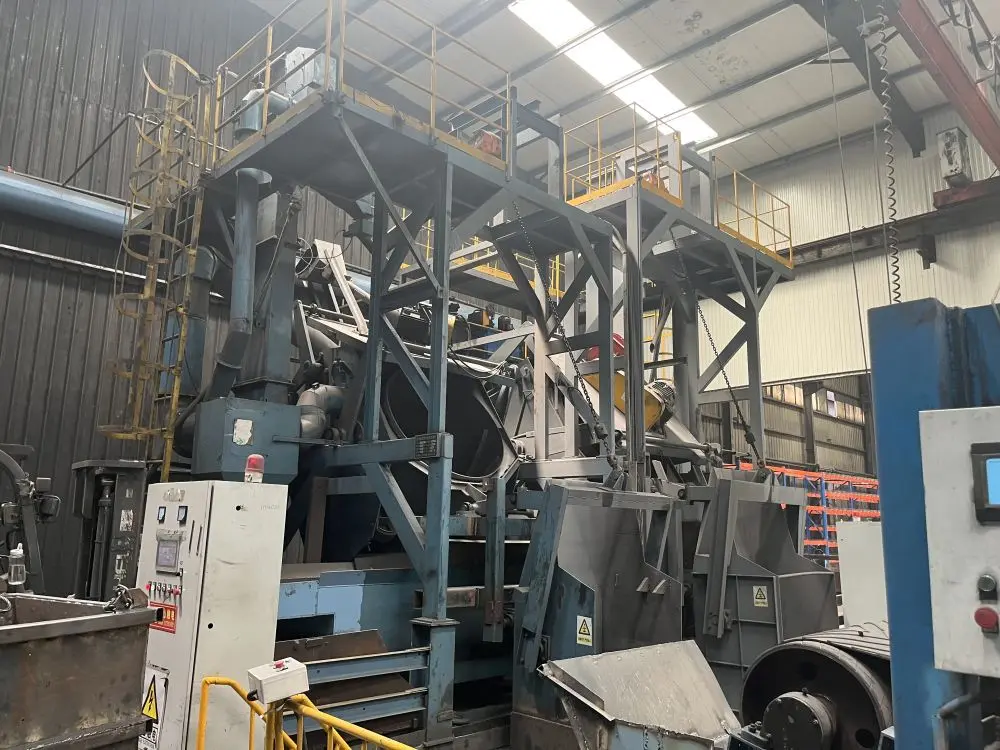

Q311 Rotary Drum Type Shot Blasting Machine

Xinke Rotary/rolling drum/barrel type shot blasting machine is suitable for surface rust removal of small work pieces(forging or castingparts) in batch production with manyvarieties.The high-speed impeller throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the green sand orscales on the surface. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work pieces whose weight are under 30kg in medium or small-scale casting or forging workshops.

Rotary/rolling drum/barrel type shot blasting machine shot blasting machine ‌ is a kind of equipment used for cleaning and strengthening metal surface, mainly used in various industries under 15 kg casting and forging parts sand, rust, skin and surface strengthening. The working principle is to throw the projectile to the workpiece that is continuously turned in the cylinder through the high-speed rotating impeller, so as to achieve the purpose of cleaning the surface of the workpiece ‌

product details

Applications

The Drum Shot Blasting Machine is primarily used for various metals including steel, iron, and aluminum, suitable for rust removal and surface strengthening, but it can also be suitable for certain types of plastics or composites depending on the blasting media used.

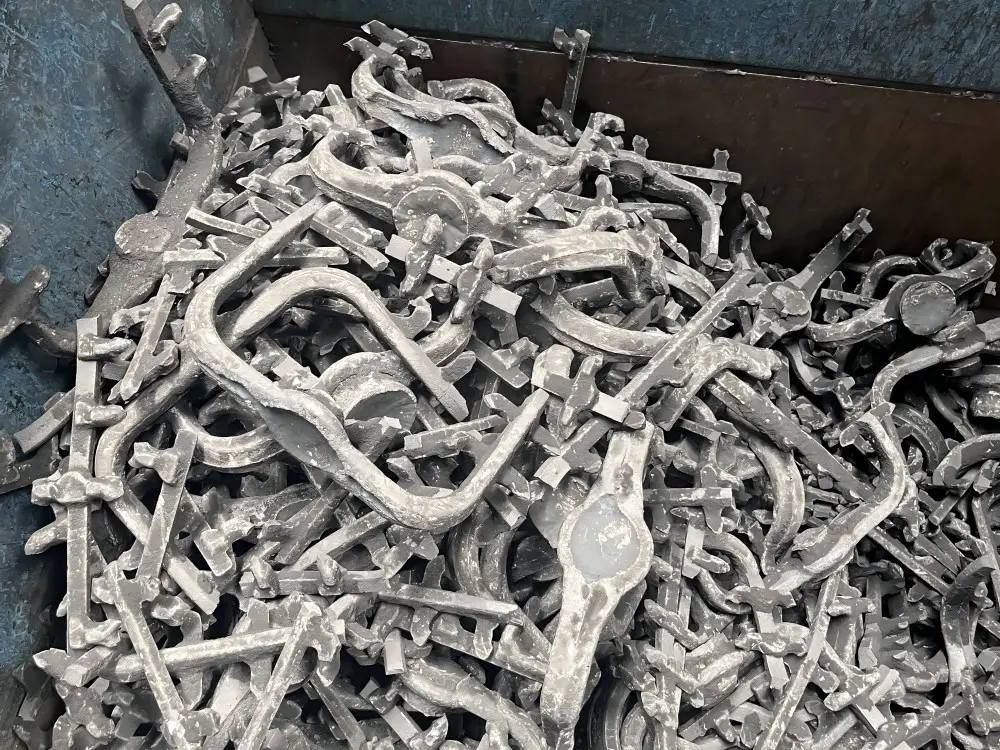

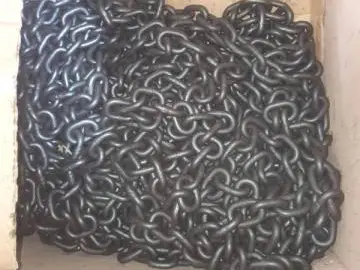

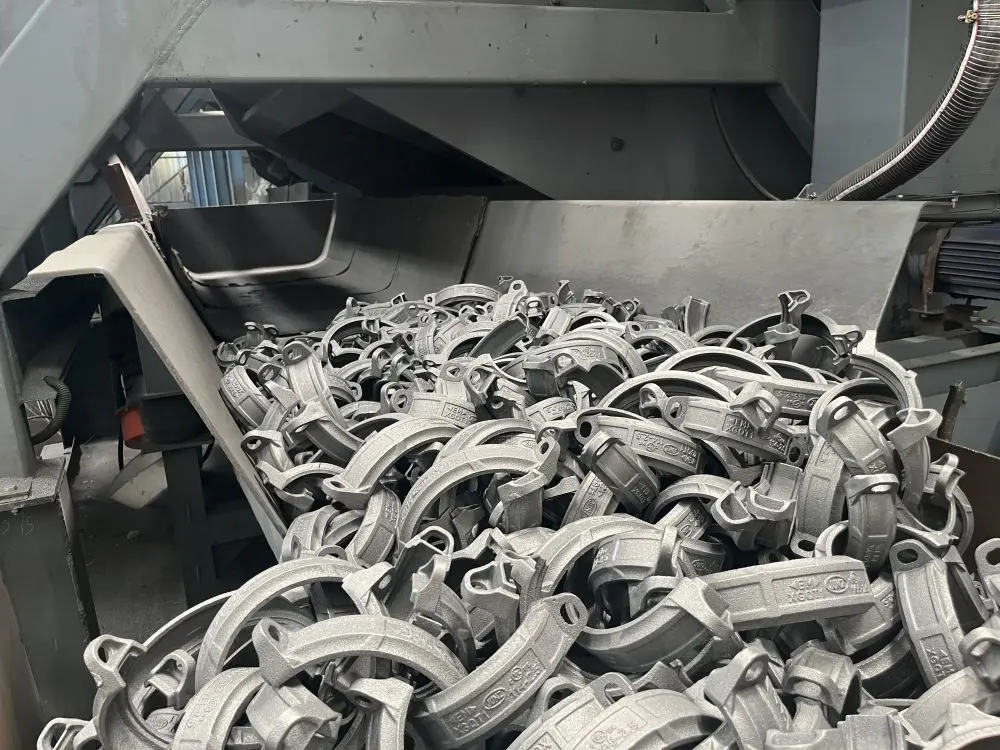

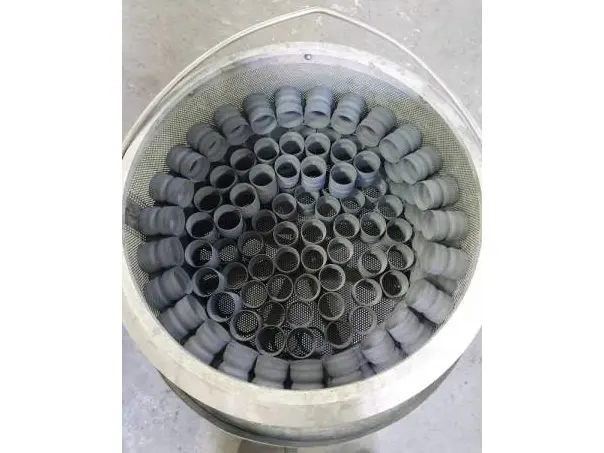

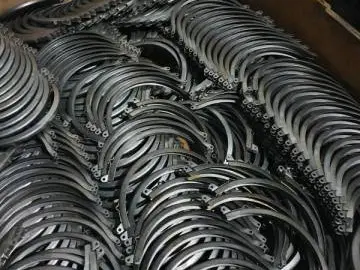

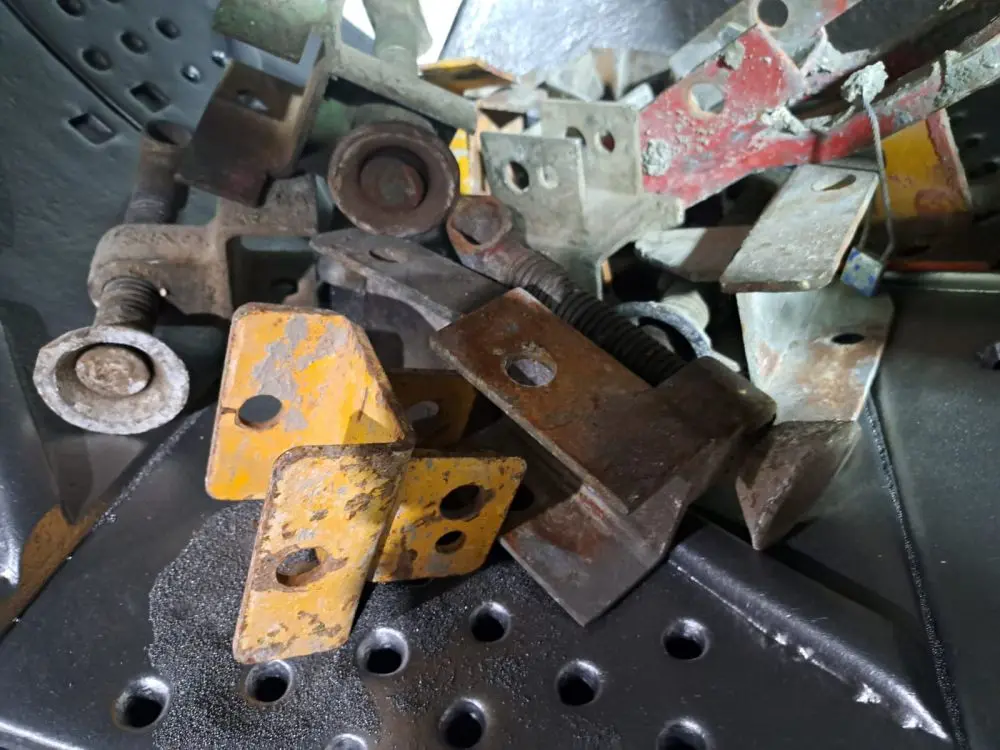

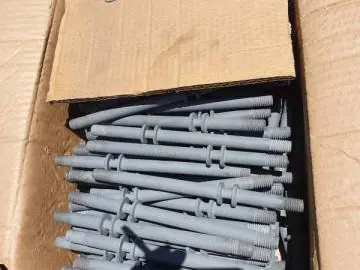

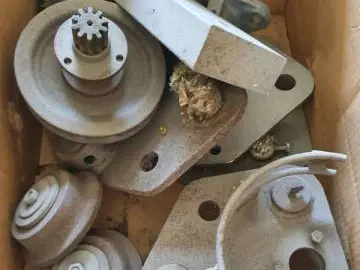

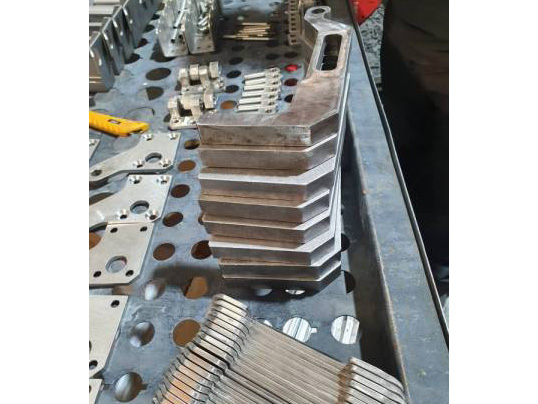

It is especially good for small castings, forgings, stampings, gears, springs without fear of collision, and other components used in machine tools, automotive, textile machinery, metallurgy, chemical and aerospace industries.

Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting m (3)pa3

Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting m (4)nbs

Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting m (5)nvx

Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting m (6)grb

Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting m (7)04i

Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting m (8)8q3

Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting m (9)pnn

Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting m(1)nf6

Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting mac (1)8g8

010203040506070809

Technical Specification

Item	Q3110BI	Q3110BII	Q3113BI	Q3113BII	QGT15
Diameter of rolling drum(mm)	1000	1000	1300	1300	1570
Loading capacity(kg)	300	300	600	600	1200
Productivity(kg/h)	600-1500	600-1500	2500-3500	2500-3500	14000-21000
Power w/o dust collector(kw)	9.7	11.9	14.5	16.3	53.4
Max weight of workpiece(kg)	15	15	30	30	40
Speed of rolling drum(r/min)	3	3	2.5	2.5	4.2
Abrasive flow rate(kg/min)	120	120	160	160	480
Ventilation capacity(m³/h)	800	2000	2000	2800	8000
Outline dimention(mm)	207824581861	387024583370	2550 3341 2250	4362 23412250	7500×5000×6800
