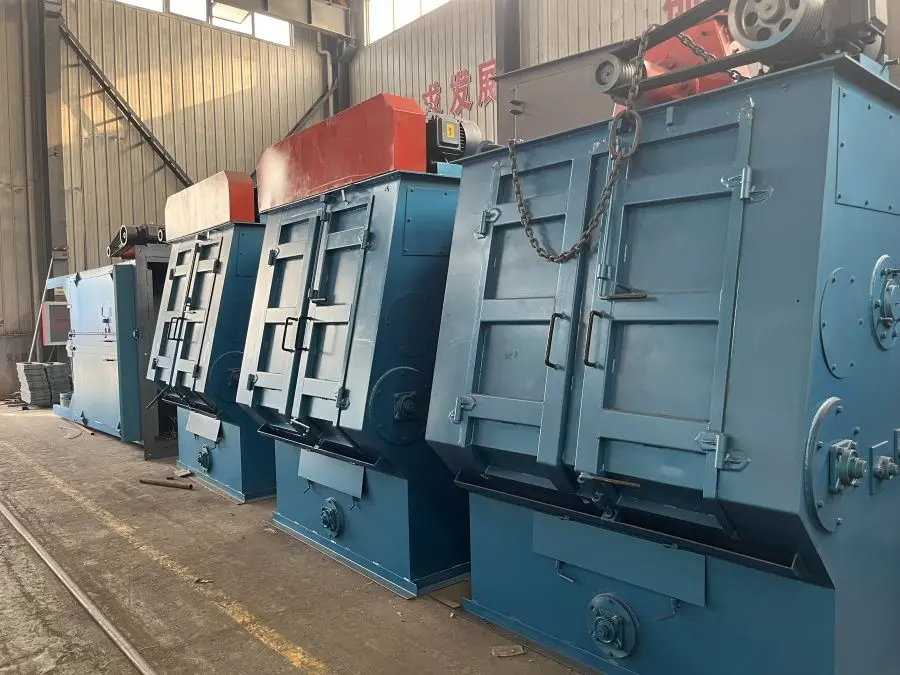

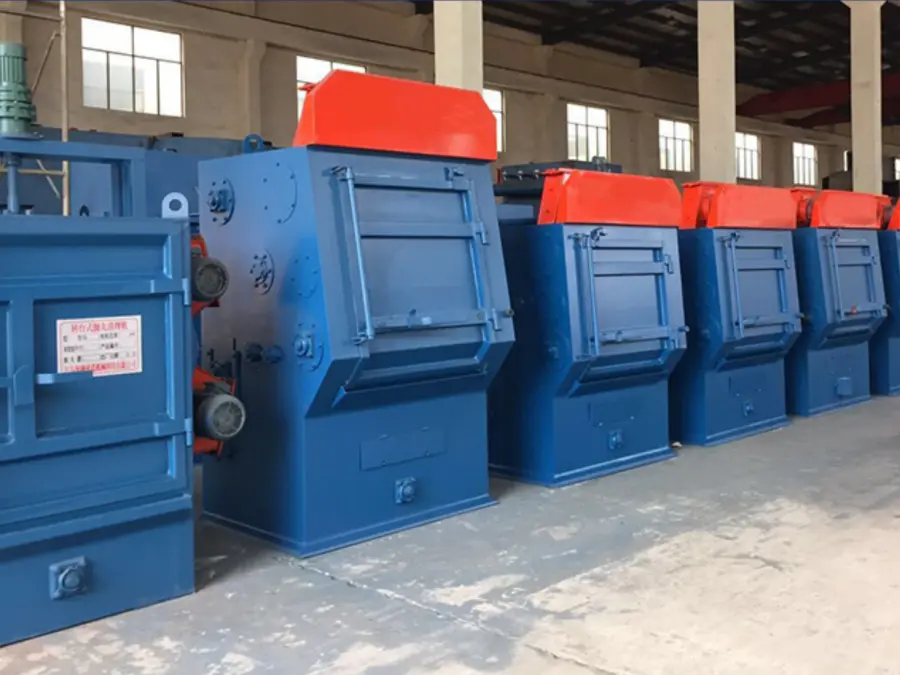

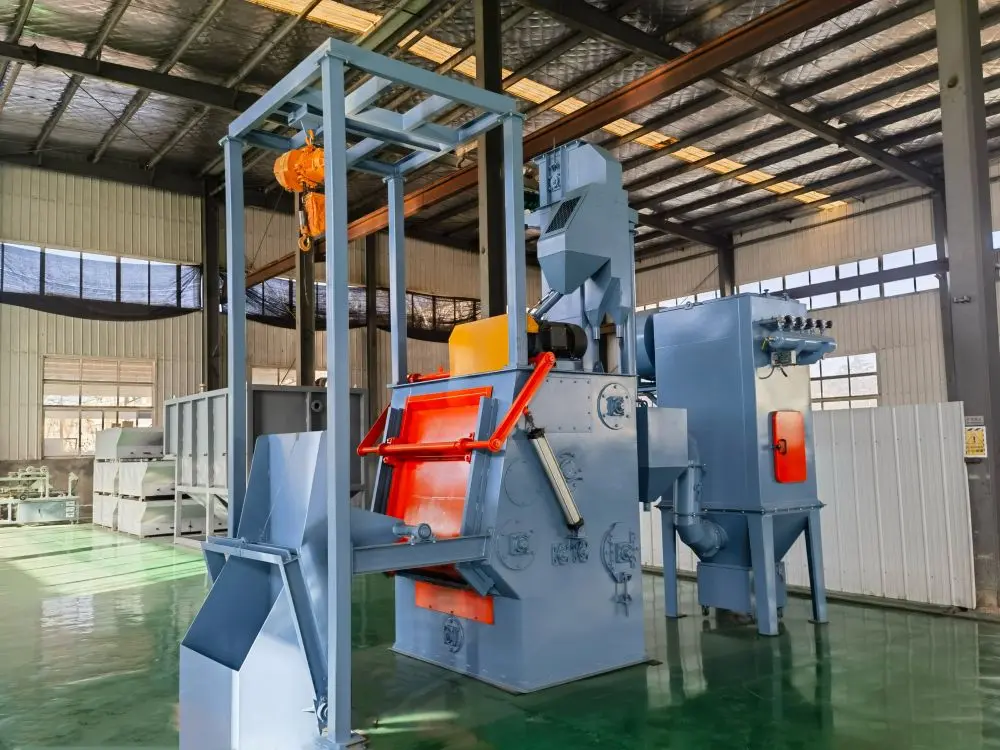

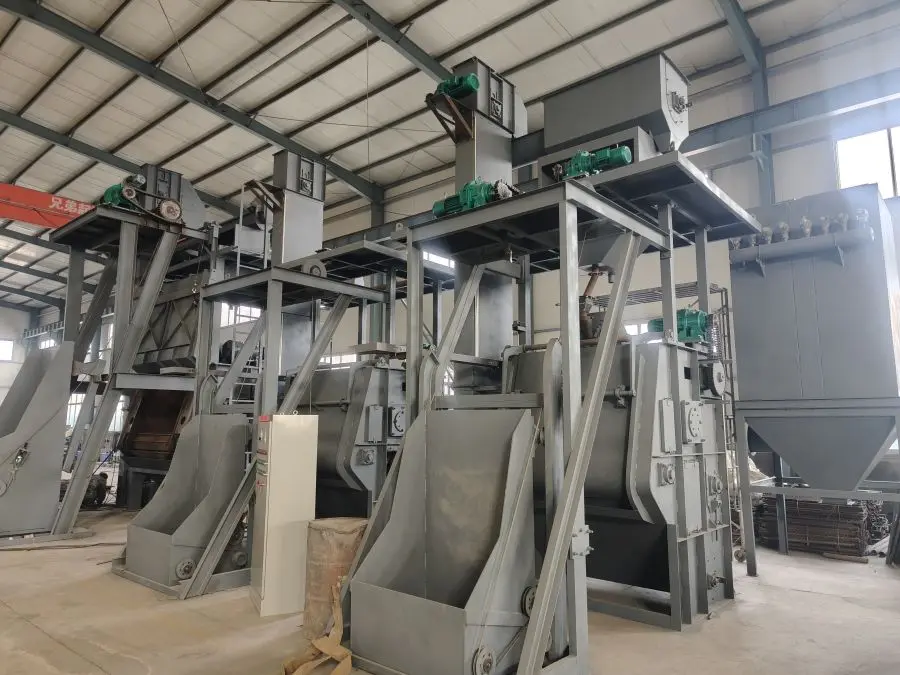

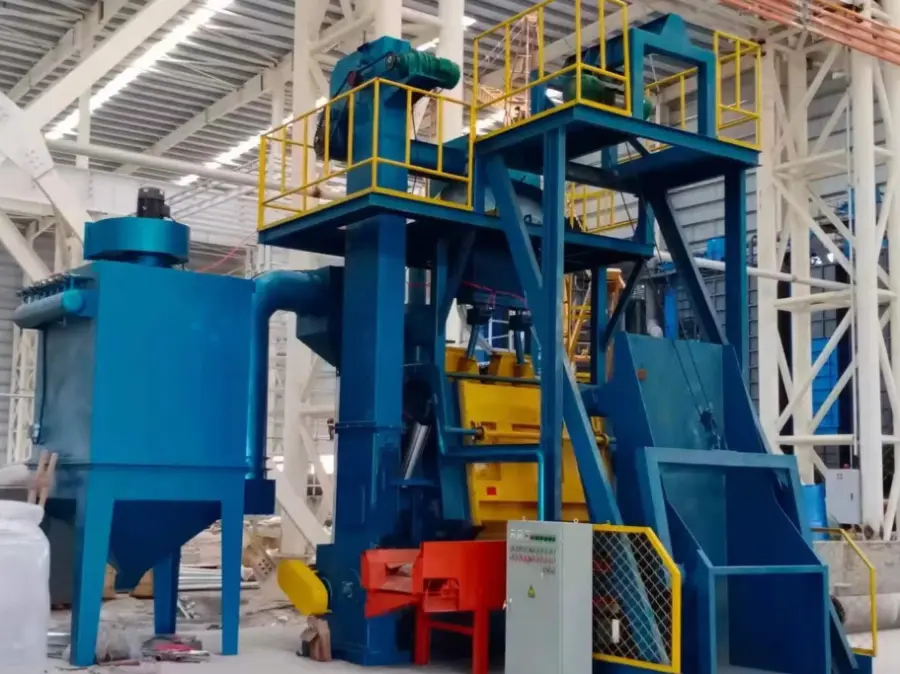

Qingdao Xinke Q32 Crawler Type Abrator Vibration Cleans Metal Surfaces Track Type Shot Blasting Machine

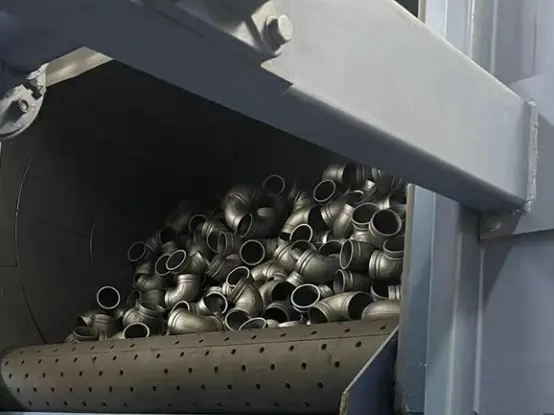

The tumble shot blast machines with conveyor belt in rubber and steel are employed for the surface treatment of batches of parts,loaded manually or automatically by means of a hydraulic skip loader. It is widely used to clean small and medium castings,forgings, aluminum work pieces, stainless steel work pieces, etc. The belt conveyor is made of wear-proof rubber. Its rotation makes the parts tumbling, and by this movement the whole surfaces of the parts are exposed to the shots thrown by the turbines.The offloading of the parts is obtained by the rotation of the belt conveyor in the opposite sense. Parts can fall directly into the empty container or through an offloading belt or vibrating conveyor.

Crawler type shot blasting machine features advantages:

The track type shot blasting machine combines domestic and foreign technology, low noise and its compact structure, it is widely used in large and medium batch production as rust removal and strengthening shot blasting treatment.

The crawler type shot blasting machine uses a cantilever centrifugal turbine, which increases the life of the machine. In addition, the international technology pulley used on crawler shot blasting machine, greatly increases the efficiency of the shot blasting machine and reduces the labor force.

The bag filter type dust collector is used in the crawler shot blasting machine, which makes the dust emission lower than the national standard and ensures the excellent working environment of the workers.



    Contact us
    product details

    Applications

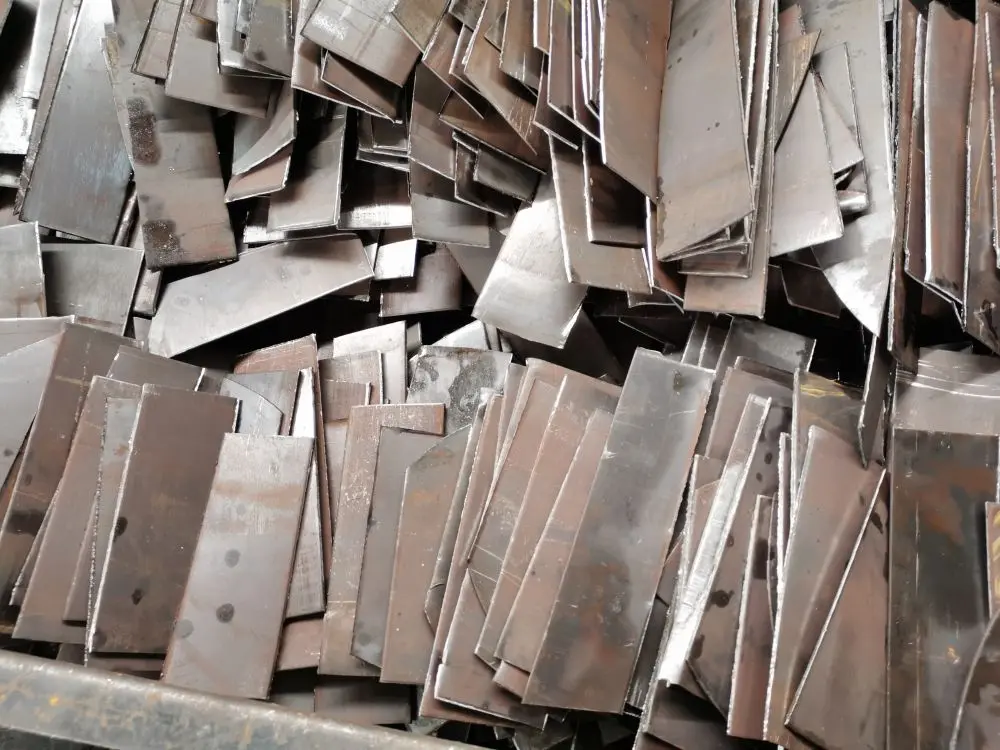

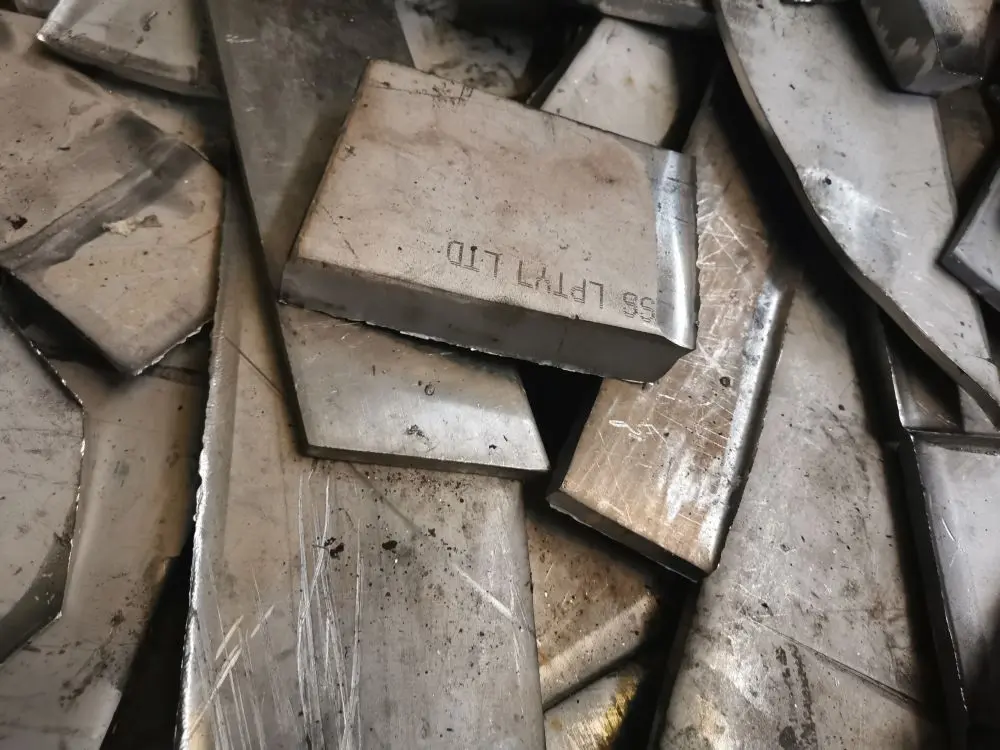

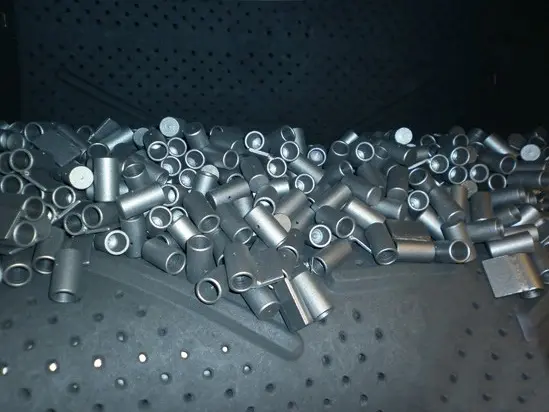

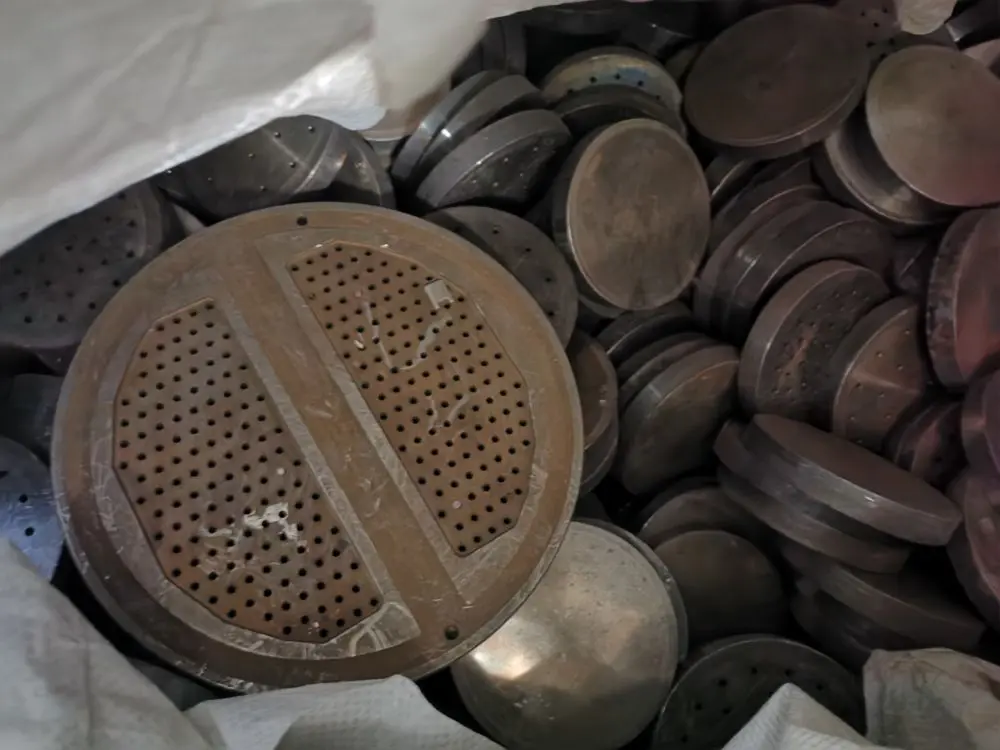

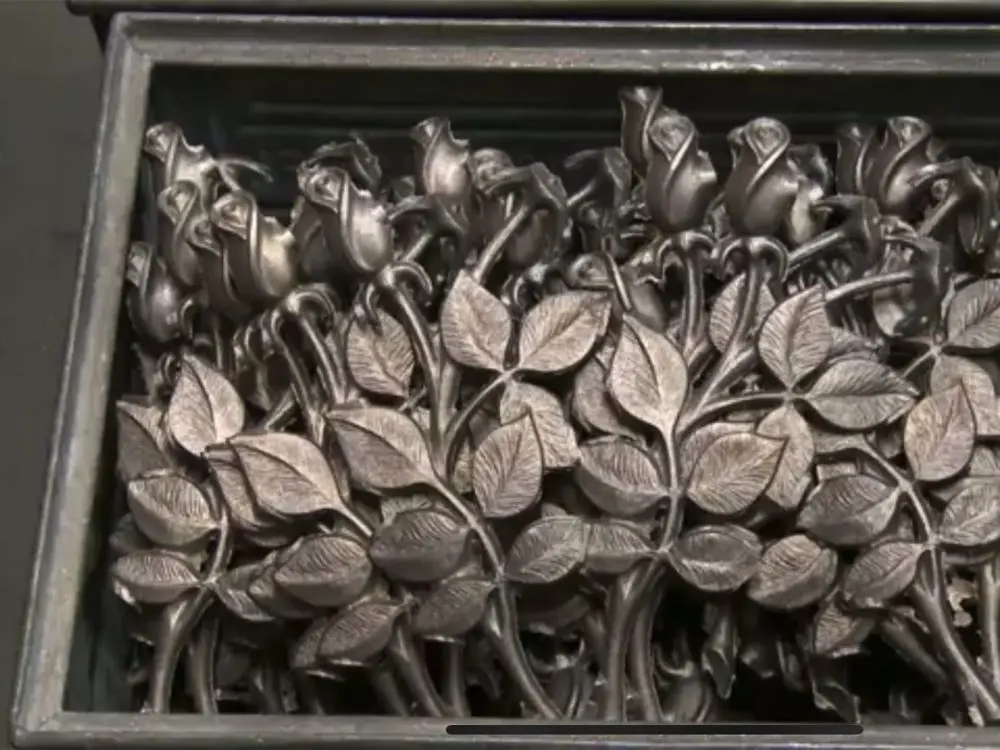

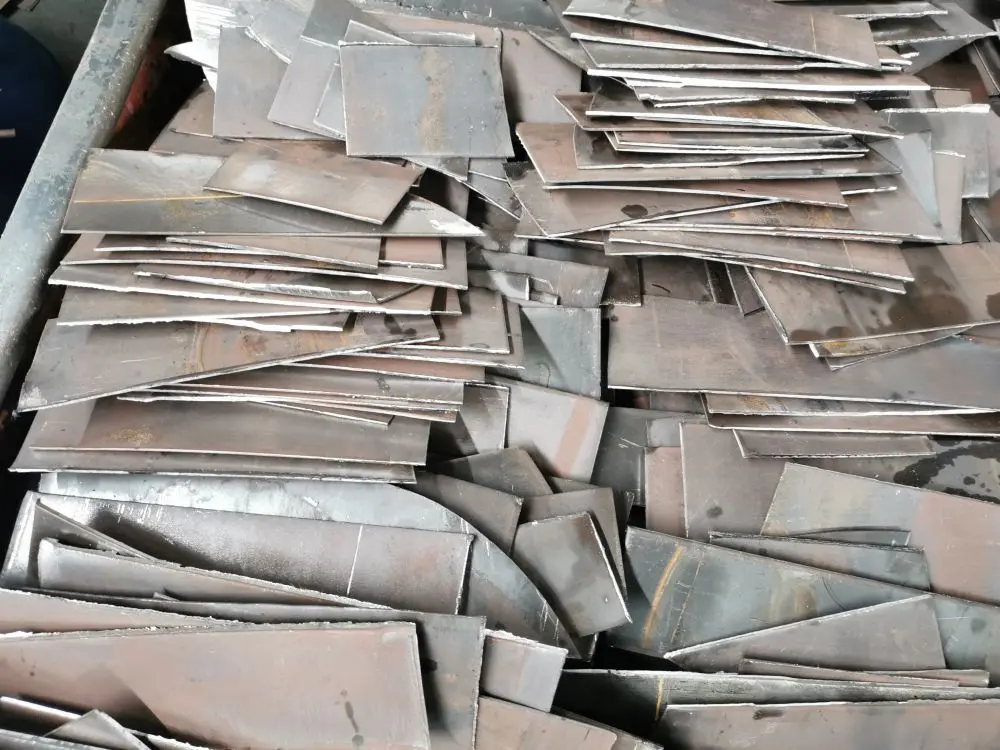

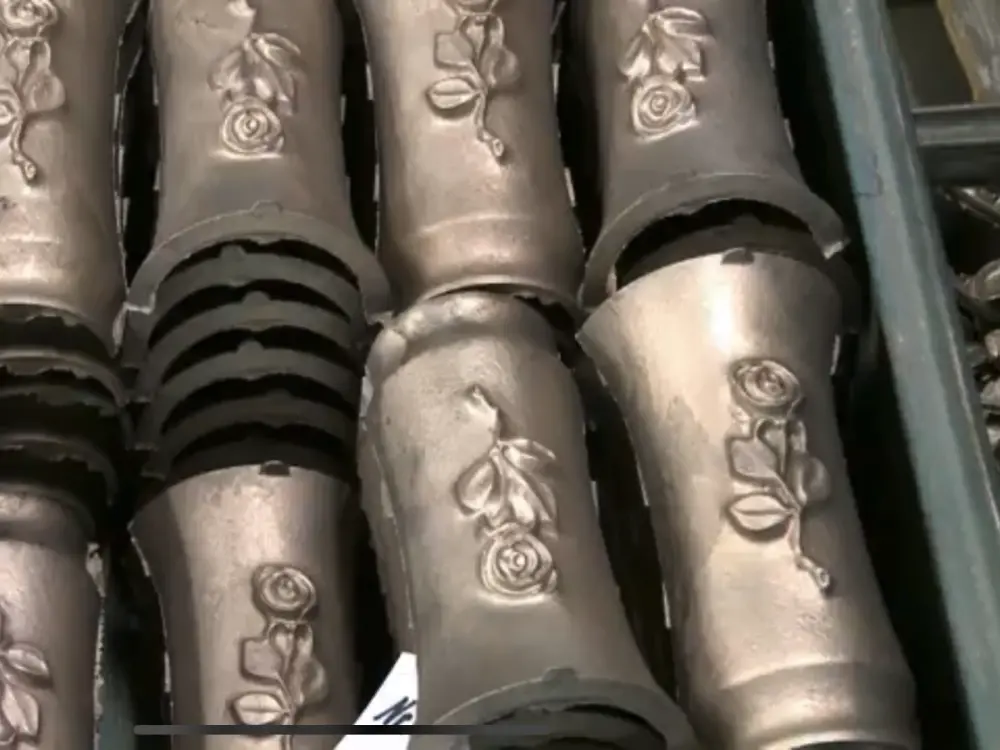

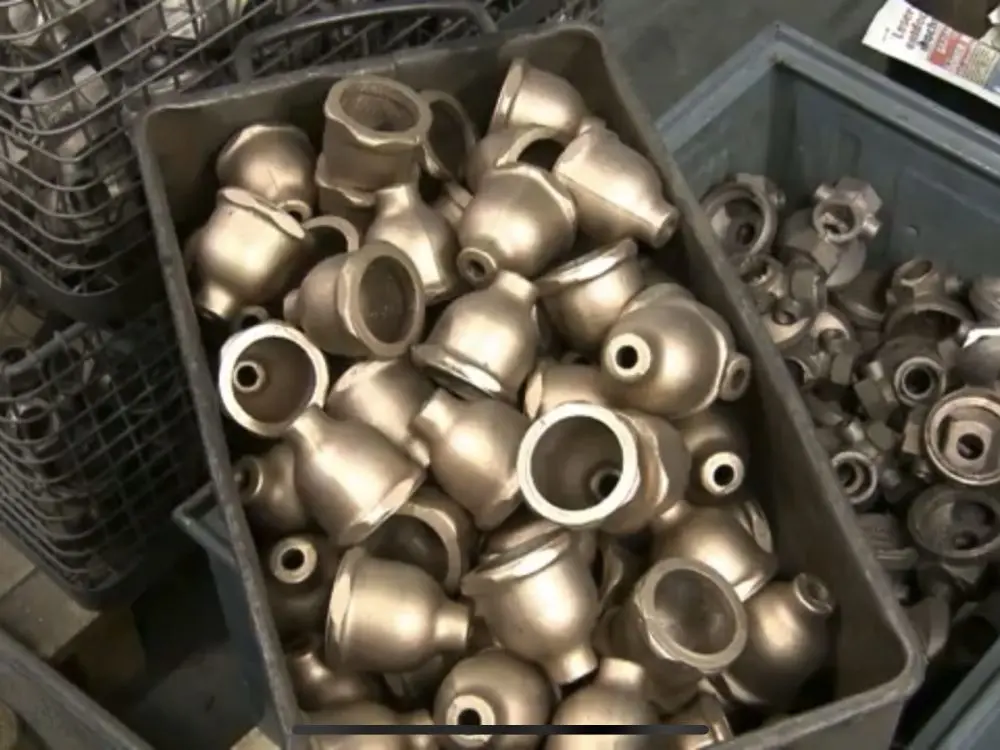

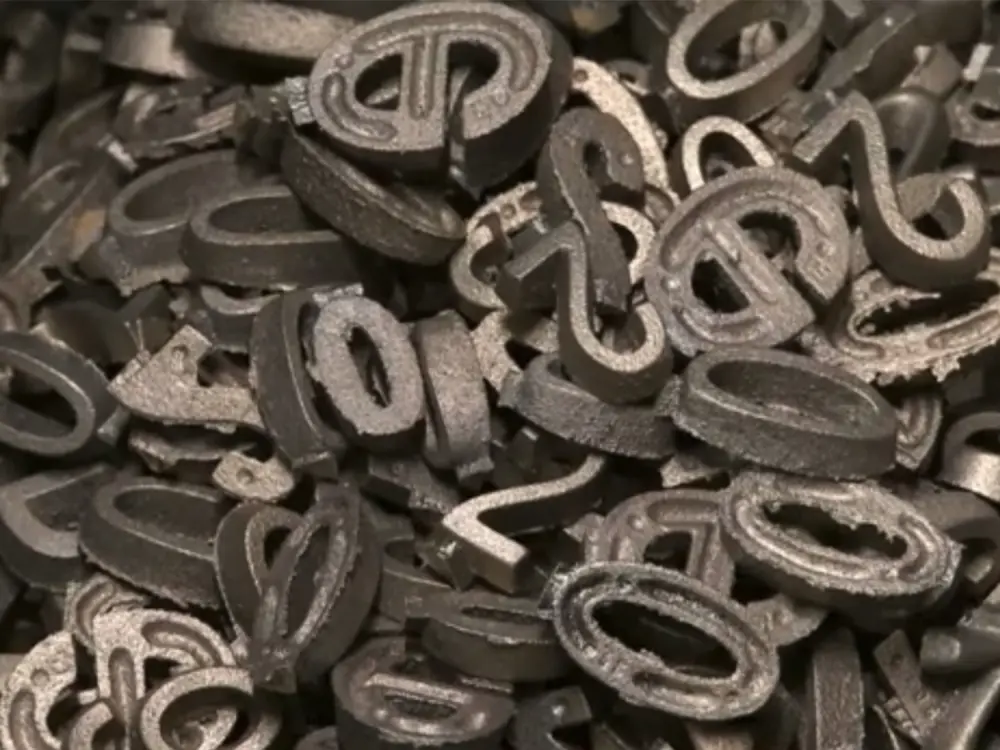

    This machine widely used to descaling of forged or heat treated parts, aluminum & stainless steel parts, desanding of ferrous and non-ferrous metal castings, deburring of metallic and non-metallic parts.

    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast (20)col
    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast (20)1wr
    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast (21)p51
    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast (21)(1)w82
    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast (22)tmn
    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast (22)mf1
    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast (23)c0o
    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast (23)jtv
    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast (24)522
    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast uf9
    01020304050607080910

    Technical Specification

    Item Q326 Q3210/QR3210A QR3210M Q3220R 15GN 28GNR 28GNM
    Productivity(T/h) 0.6-1.2 1.5-2.5 2-3.5 3-4.5 5-6 10-12 10-12
    Max. loading weight(kg) 200 600 600 1000 1362 3500 3500
    Diameter of end disk(mm) Φ650 Ø1000 Ø1000 Ø1000 Ø1092 Ø1245 Ø1245
    Shot-blasting capacity(kg/min) 120*1 250*1 250*1 250*2 480*1 480*2 480*2
    Dedusting air volume(m³/h) 2200 5000 5000 6000 5300 8000 6500
    Power consumption(kw) ～13 ～24 ～35 ～52 ～49.3 ～66.5 ～64.5
    Track type Rubber Rubber Metal Rubber/Metal Metal Rubber Metal
    Loading method Manual or auto Manual or auto Manual or auto Auto Auto Auto Auto

    Features

    Hook Type Shot Blasting Machine Spinner Hanger Type Shot Blasting Machine hoist type shot blast machiny58
    ● Engineers with more than 30 years experiences
    ● All equipment passed international certifications
    ● High-performance blast wheel
    ● Lifetime technical support
    ● Simple integration into existing production line
    ● Custom designs with flexible layouts
    ● Quick turnaround, easy assembly and commissioning
