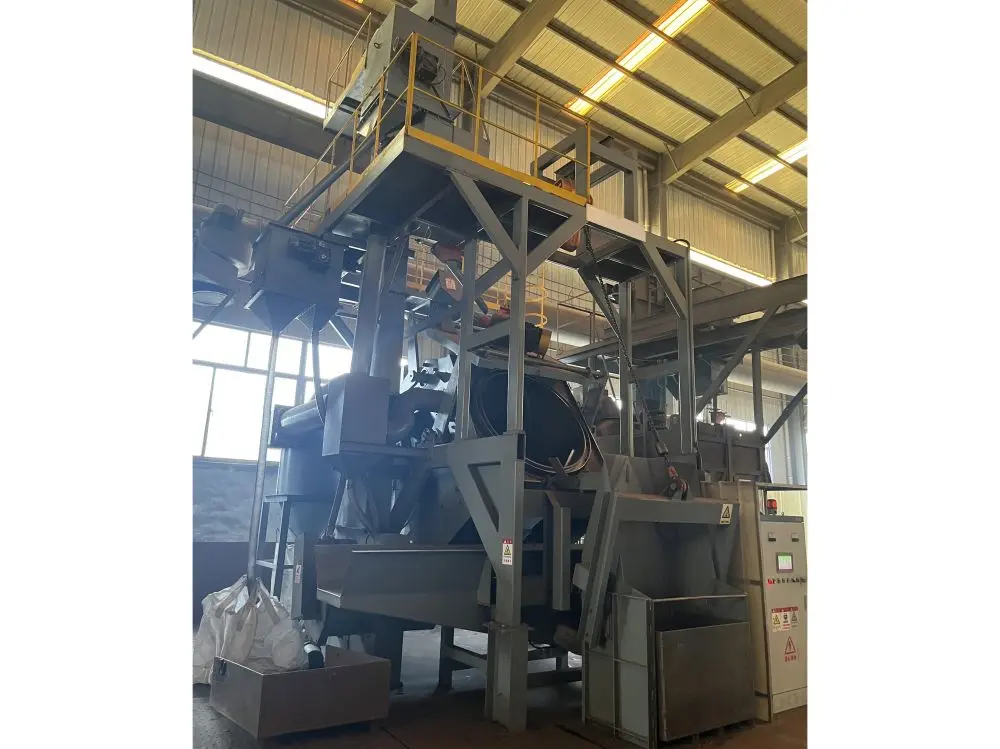

Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machine Inclined.jpg
Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machine Inclined (3).jpg

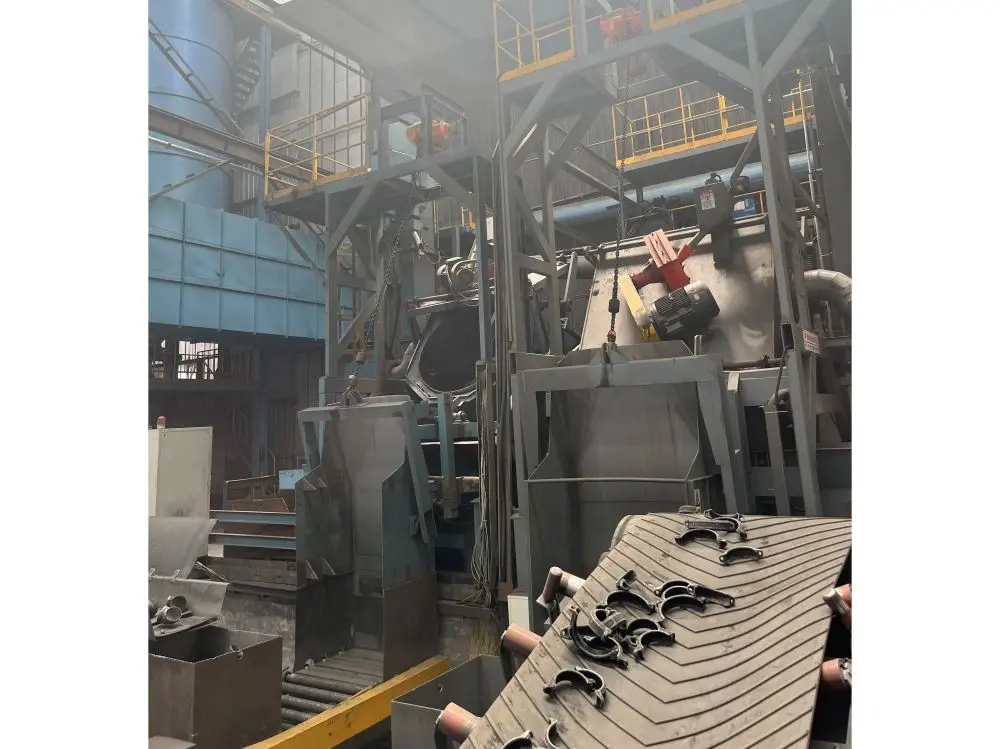

Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machine Inclined (5).jpg

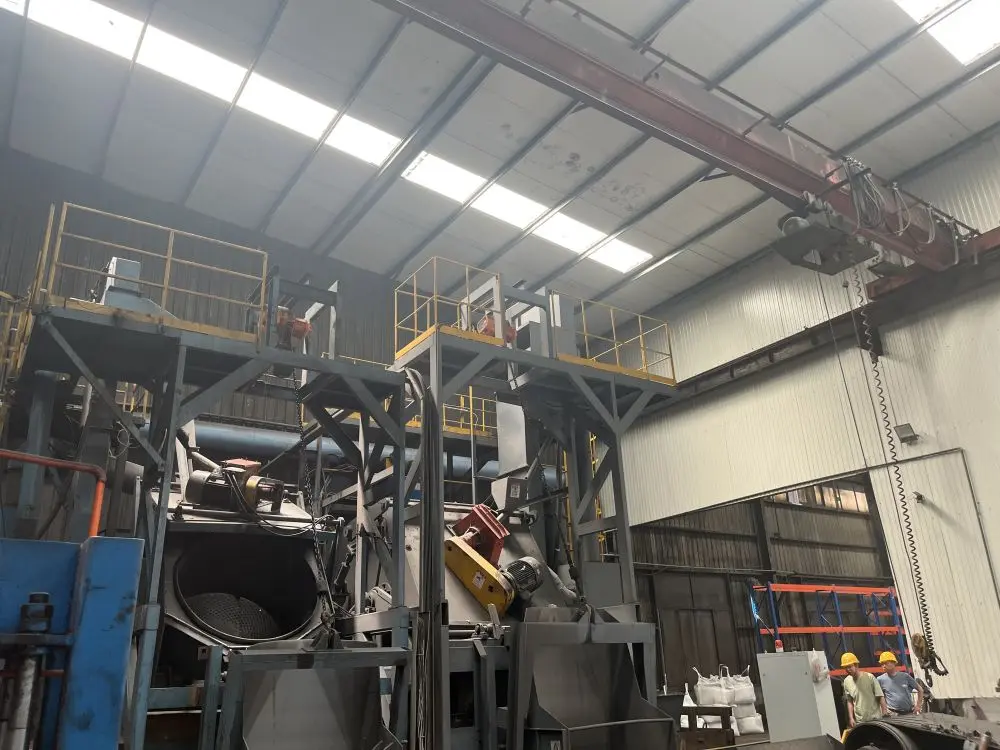

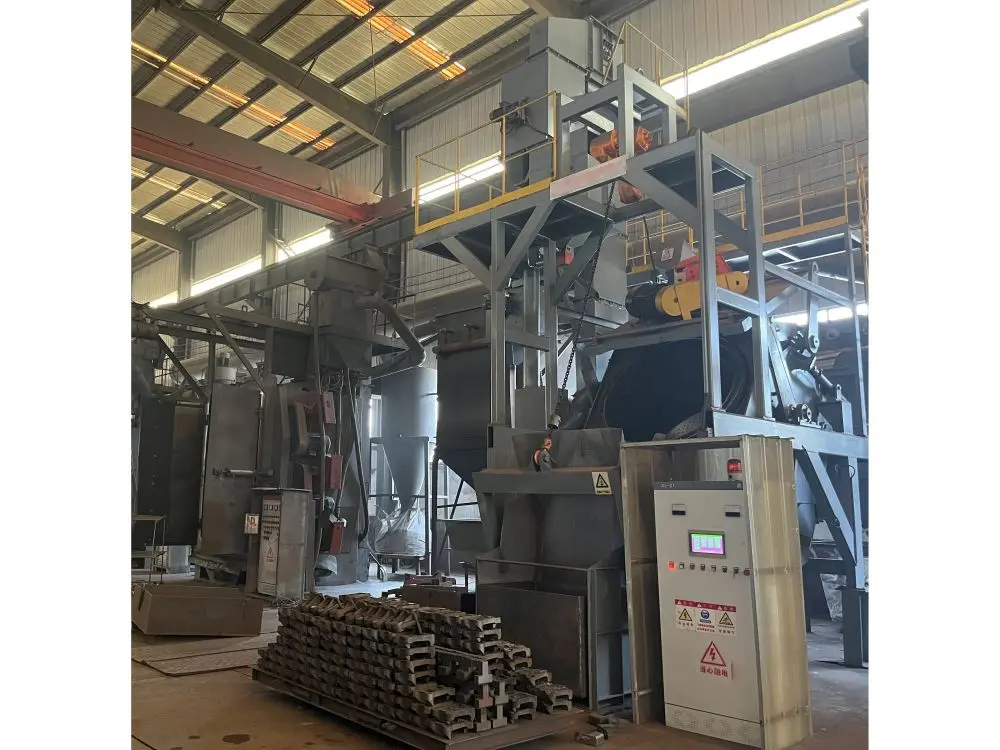

Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machine Inclined (7).jpg

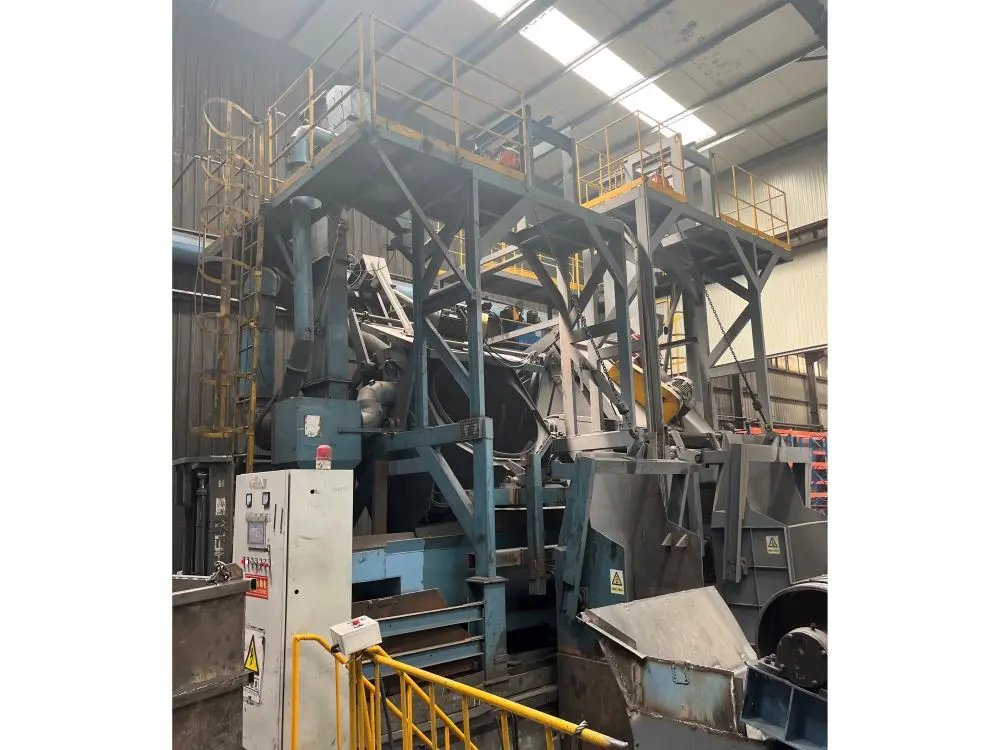

Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machine Inclined s (1).jpg
Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machine Inclined (8).jpg

Tiltling Drum Shot Blasting Machine /Automatic loading Rotary drum Shot Blasting Machine / Inclined swing drum shot blasting machine

Xinke highly efficient titling drum shot blasting machine is suitable for surface rust removal of small work pieces (forging or casting parts) in batch production with many varieties.

It is uniformly clean and highly productive, so it is suitable for cleaning small pieces.

The machine is controlled by a PLC with a high degree of automation. It can work as a single machine or connected to production line.

This machine operates through a combination of mechanical movements and abrasive blasting to clean or finish metal parts. As the barrel rotates and tilts, every surface of the parts gets exposed to the blasting media, effectively cleaning them or altering their surface properties. The high-speed turbine throws abrasive onto the continuous tumbling castings or forgings in the bucket to remove the green sand or scales from the surface.

Machines' housing is protected by wear-resistant manganese steel liners.

    Contact us
    product details

    Applications

    The Drum Shot Blasting Machine is primarily used for various metals including steel, iron, and aluminum, suitable for rust removal and surface strengthening, but it can also be suitable for certain types of plastics or composites depending on the blasting media used.

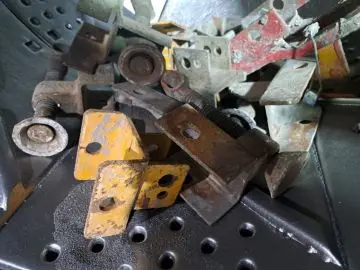

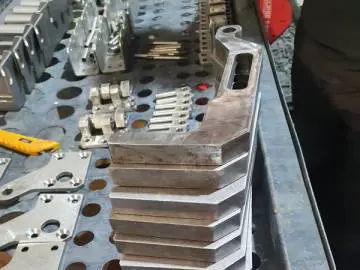

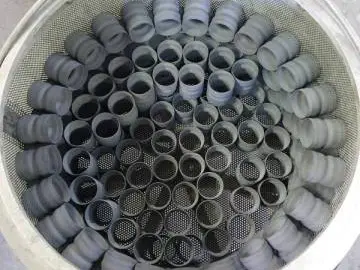

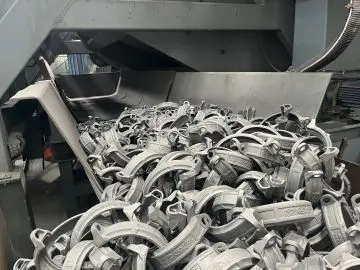

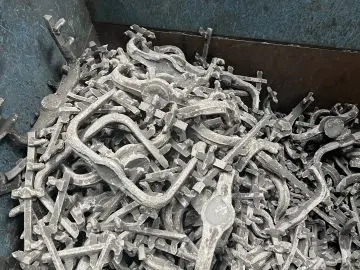

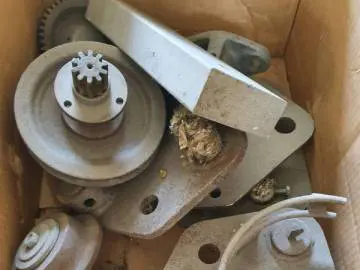

    It is especially good for small castings, forgings, stampings, gears, springs without fear of collision, and other components used in machine tools, automotive, textile machinery, metallurgy, chemical and aerospace industries.

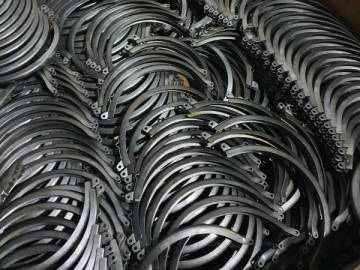

    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machin (3)

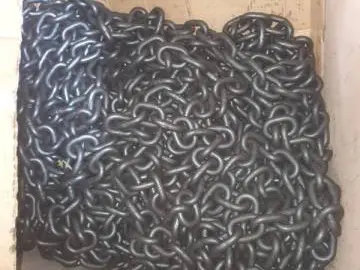

    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machin (4)
    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machin (5)

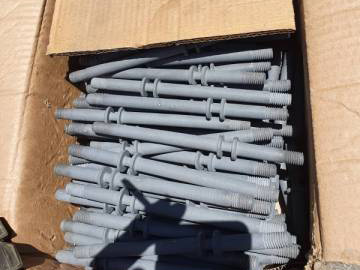

    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machin (6)
    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machin (7)
    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machin (8)
    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machin (9)
    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machin
    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machine (1)
    010203040506070809

    Technical Specification

    Item QGT15 QGT18
    Diameter of rolling drum(mm) 1500 1800
    Loading capacity(kg) 1400 2000
    Productivity(kg/h) 14000-21000 12000-24000
    Total power(kw) 53.4 90
    Max weight of workpiece(kg) 40 60
    Speed of rolling drum(r/min) 4.2 4.5
    Abrasive flow rate(kg/min) 480 650
    Ventilation capacity(m³/h) 18000 18000

    Features

    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machine Inc
    ● Engineers with more than 30 years experiences
    ● All equipment passed international certifications

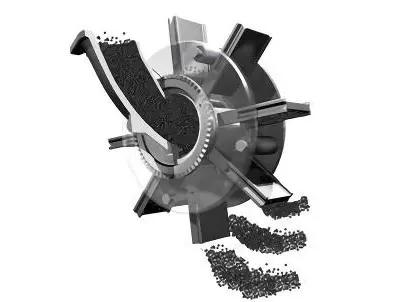

    ● High-performance blast wheel
    ● No foundations required
    ● Minimum floor space required
    ● Lifetime technical support
    ● Simple integration into existing production line
    ● Easy installation and easy startup

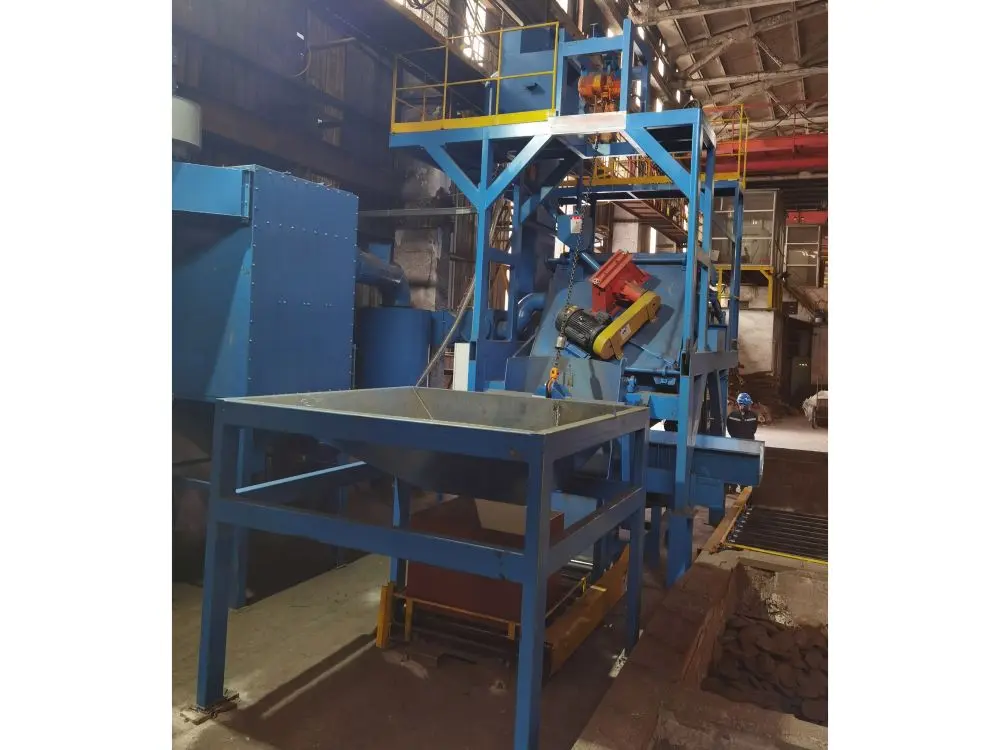

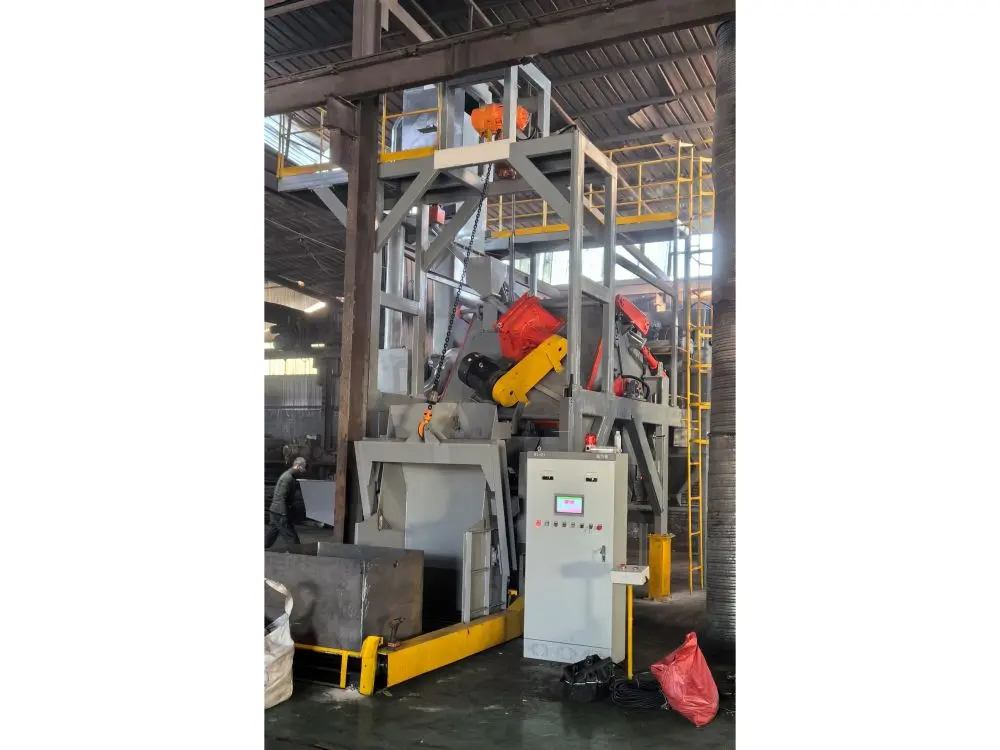

    Reference

    Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting mac (3)
    Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting mac (4)
    Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting mac (5)
    Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting mac (6)
    Tiltling Drum Shot Blasting Machine Automatic loading Rotary drum Shot Blasting Machine (7)
    Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting mac
    Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting machi (1)
    Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting mac (8)
    Drum Type Shot Blasting Machine Rotary Barrel Shot Blasting Machine Tilting drum shot blasting mac (7)
    010203040506070809
