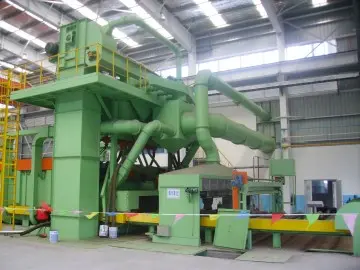

Xinke preservation line is a highly complex, individually configured surface treatment system that fully automatically pre-heats, derusts, and descales and then applies a temporary corrosion protection – the welding primer – to steel.

Its purpose is to improve the corrosion resistance and fatigue resistance of the steel plate, extend the service life, and optimize the surface state of the steel plate to facilitate subsequent processing.

Preservation lines can take on enormous dimensions, a complete preservation line that can be easily integrated seamlessly into a customized production line, this ensures a flexible production process and a high material output.

Xinke preservation line is a highly complex, individually configured surface treatment system that fully automatically pre-heats, derusts, and descales and then applies a temporary corrosion protection – the welding primer – to steel.

Its purpose is to improve the corrosion resistance and fatigue resistance of the steel plate, extend the service life, and optimize the surface state of the steel plate to facilitate subsequent processing.

Preservation lines can take on enormous dimensions, a complete preservation line that can be easily integrated seamlessly into a customized production line, this ensures a flexible production process and a high material output.

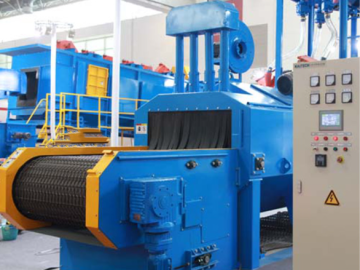

The Mesh belt shot blasting machine is an automated surface treatment system designed to remove scale, rust, welding slag, and burrs from metal workpieces while enhancing surface strength for improved fatigue resistance. Its operating principle includes: Workpieces are evenly placed on a wear-resistant mesh belt, which transports them into the blast chamber via motorized drive.High-speed rotating blast wheels (turbines) propel steel shot or abrasive media at 60–80 m/s onto the workpiece surface, effectively stripping contaminants and creating uniform roughness.  Used abrasives and debris pass through a vibratory screen or airwash system. Reusable media is recycled to the hopper, while dust is captured by the dust collector, ensuring environmental compliance.Treated workpieces exit via the mesh belt, ready for subsequent coating or machining.

Wire Mesh type shot blasting machine is through high-speed projectile impact on the surface of the workpiece, can effectively remove the surface coating and peeling, improve the surface roughness and adhesion of the workpiece ‌, the net belt is one of the important parts of this equipment, it always runs through the whole radial shot blasting belt arranged by the upper and lower shot blasting machine to accept high-speed cutting of the projectile flow for a long time, so the net transmission belt itself has become vulnerable parts. Therefore, the high wear-resistant transmission belt  made of rolled Mn13 is selected to ensure long service life and improve the production efficiency of the equipment.

Wire Mesh type shot blasting machine It mainly has the characteristics of small continuity, high cleaning efficiency, small deformation, no pits, compact structure, environmental protection performance, wide application range, etc., can be used alone, can also be used in multiple combinations.

Wire Mesh belt type shot blasting machine is mainly used for surface treatment and shot blasting strengthening of thin wall casting, thin wall iron, aluminum alloy castings, ceramic and other small work-piece with features of continuous performance, high cleaning efficiency, small deformation, no pit etc. It can be used alone or can be used with other shot blasting machine.
This machine provides high volume, cost effective performance for all metal processing requirements. They will handlelarge die castings, automotive wheels, ferrous and non-ferrous castings, weldments, fabrications and more.

Mesh belt shot blasting machine can be used very flexibly and easily integrated into a continuous production line.

Xinke offers large shot blasting machines which allow high volume and complex parts to be shot blasted with no manual blasting. The parts are passed through the shot blaster on a wire mesh conveyor belt. The impurities such as oxide, welding slag and oil on the surface will be removed, and the surface will get a certain roughness, so as to achieve the surface treatment effect.

A highly wear-resistant wire mesh belt, with tension adjustment, provides the part transport. High volume of batches and fast consistent shot blasting can be achieved very easily.

Place workpieces on the conveyor belt, the shot blasting chamber is equipped with powerful turbines around the housing, while the turbines are rotating at high speed, which allows them to treat very complex components, especially workpiece with “pockets” or difficult to reach areas.

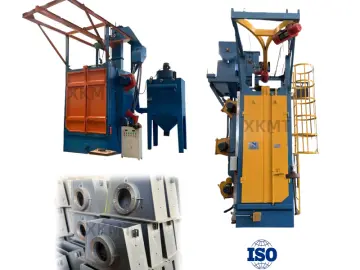

Hook Type Shot Blasting Machine is a robust industrial surface treatment solution dedicated to the cleaning and strengthening of single workpieces or small-batch productions. It operates by accelerating metallic abrasive particles through centrifugal force, creating a high-speed jet that impacts the surface of the workpiece to achieve efficient treatment.
Workpieces including castings, forgings, welded parts and structural components are safely suspended from a powered hook. The hook conveys the workpiece into the sealed blasting chamber, where it rotates steadily to ensure full exposure during the process. High-performance blast wheels throw abrasives forcefully and evenly across the entire surface, effectively removing rust, oxide, sand, scale and other contaminants. At the same time, this process forms a uniform compressive stress layer that enhances the workpiece’s durability and fatigue resistance.
Once the blasting cycle is completed, the hook transfers the workpiece to a dust removal zone for further cleaning. The built-in abrasive recycling system automatically screens, cleans and recirculates usable abrasives, while separating dust and waste for centralized collection. The workpiece is then unloaded, presenting a clean, consistent surface ideal for painting, coating or subsequent machining.
With strong adaptability to various workpiece shapes, sizes and weights, this machine offers high reliability, easy operation and low maintenance. It is widely applied in foundries, machinery manufacturing, construction equipment and metal processing industries.

Hook-Type Shot Blasting Machine is an industrial cleaning system designed for surface treatment of individual components or small batches. Its core working principle revolves around using centrifugal force to propel small metallic abrasives, known as shot, at high velocity against the workpiece's surface.

The process begins with the workpiece, such as a casting or forging, being securely hung from a motorized hook. This hook transports the part into the fully enclosed blast chamber. Inside, a high-speed rotating wheel called an impeller accelerates the abrasive media, creating a dense, uniform stream that impacts the entire surface of the suspended, slowly rotating workpiece. This impact effectively removes contaminants like rust, scale, sand, and old paint, while also imparting a beneficial compressive stress layer that improves fatigue strength.

After blasting, the hook carries the workpiece to a separate compartment for cleaning. Here, a recycling system separates the reusable abrasive from the removed dust and debris, which is collected for disposal. The cleaned workpiece is then unloaded, leaving a clean, matte-finish surface ready for subsequent coating or further processing. This machine is particularly valued for its flexibility in handling a wide variety of part shapes and sizes without the need for complex fixturing.

The working principle of the hook type shot blasting machine is to drive the shot blasting machine wheel to rotate at high speed through the motor, spray the metal projectile to the surface of the workpiece, remove the dirt, oxide and other impurities on the surface through impact and friction, and enhance the hardness and corrosion resistance of the workpiece‌。

Hook type shot blasting machine The shot blasting room is used to place metal workpieces and shot blasting wheels，Usually consisting of a protective plate to prevent splash;The shot blasting wheel is driven by an electric motor to rotate at a high speed.The projectile is sprayed onto the surface of the metal workpiece;The shot collecting system is used to collect the shot in the shot blasting room to ensure its recycling. The dust removal system is used to purify the air in the shot blasting room and remove dust and impurities generated during the shot blasting process.

the advantages of the Hook type shot blasting machine include good cleaning effect, high production efficiency, cost savings and a wide range of application.It can effectively remove the impurities on the surface of the workpiece, improve the surface finish and roughness, and enhance the hardness and corrosion resistance of the workpiece.At the same time, the hook type shot blasting machine can handle multiple workpieces at the same time, and the processing time is short, which greatly improves the production efficiency.Because it does not use chemicals and does not produce pollutants such as waste water and exhaust gas, it also saves costs.

Hook type shot blasting machine is widely used in metal manufacturing industry, including shipbuilding and repair, automotive industry, aerospace, bridge construction, pipeline treatment and other fields.In these fields, the hook type shot blasting machine is used to clean the welding slag, paint, rust, etc., on the surface of the workpiece, improve the surface finish and corrosion resistance, and provide a good foundation for subsequent processing (such as spraying, electroplating).

The working principle of the hook type shot blasting machine is to drive the shot blasting machine wheel to rotate at high speed through the motor, spray the metal projectile to the surface of the workpiece, remove the dirt, oxide and other impurities on the surface through impact and friction, and enhance the hardness and corrosion resistance of the workpiece‌。

Hook type shot blasting machine The shot blasting room is used to place metal workpieces and shot blasting wheels，Usually consisting of a protective plate to prevent splash;The shot blasting wheel is driven by an electric motor to rotate at a high speed.The projectile is sprayed onto the surface of the metal workpiece;The shot collecting system is used to collect the shot in the shot blasting room to ensure its recycling. The dust removal system is used to purify the air in the shot blasting room and remove dust and impurities generated during the shot blasting process.

the advantages of the Hook type shot blasting machine include good cleaning effect, high production efficiency, cost savings and a wide range of application.It can effectively remove the impurities on the surface of the workpiece, improve the surface finish and roughness, and enhance the hardness and corrosion resistance of the workpiece.At the same time, the hook type shot blasting machine can handle multiple workpieces at the same time, and the processing time is short, which greatly improves the production efficiency.Because it does not use chemicals and does not produce pollutants such as waste water and exhaust gas, it also saves costs.

Hook type shot blasting machine is widely used in metal manufacturing industry, including shipbuilding and repair, automotive industry, aerospace, bridge construction, pipeline treatment and other fields.In these fields, the hook type shot blasting machine is used to clean the welding slag, paint, rust, etc., on the surface of the workpiece, improve the surface finish and corrosion resistance, and provide a good foundation for subsequent processing (such as spraying, electroplating).

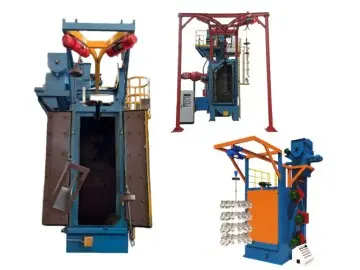

Q37 series hook type airless shot blast cleaning machine is mainly used for surface cleaning and strengthening of steel structural parts, castings, aluminum alloy parts and other spare parts.  Not only removing rust of workpiece surface, but also improving the internal stress of workpiece, achieve the purpose of strengthening and improving fatigue strength of the workpiece.

Hook type shot blasting machine is the most flexible machine types.  Versatile Processing Specially designed hooks rotate 360° to ensure uniform blasting on all surfaces, ideal for complex-shaped workpieces like forgings, castings, and welded parts.Q37 series hook type airless shot blast cleaning machine is mainly used for surface cleaning and strengthening of steel structural parts, castings, aluminum alloy parts and other spare parts.

In particular The Double hook shot blasting machine variant represents a significant leap in productivity. This ingenious design eliminates downtime, dramatically increasing throughput for high-volume production facilities. For operations handling larger, more complex parts, the double hanger shot blasting machine for surface cleaning offers enhanced stability. The dual-hanger system distributes weight evenly, preventing part deformation and ensuring a consistent, uniform blast on all surfaces.

Hook Type shot blasting machine is one of our equipment, it owns advantages of high effective, bigger cleaning space. Not only removing rust of workpiece surface, but also improving the internal stress of workpiece, achieve the purpose of strengthening and improving fatigue strength of the workpiece.Versatile Processing Specially designed hooks rotate 360° to ensure uniform blasting on all surfaces, ideal for complex-shaped workpieces like forgings, castings, and welded parts.

High Efficiency Powerful blast wheel and optimized airflow achieve thorough rust/scale removal while improving surface adhesion for coatings.  Durable Construction Robust wear-resistant liners and high-quality abrasives extend equipment lifespan with minimal maintenance. Eco Friendly Design Closed-loop system with advanced dust collection reduces pollution and abrasive waste. Applications: Automotive, machinery, shipbuilding, and foundry industries. Boost your productivity with our reliable shot blasting solutions!
